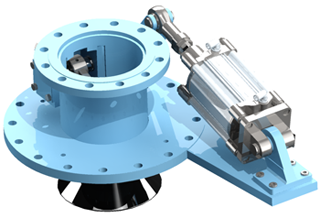

Cup valves
- inlet valve for all kinds of bulk material on conveying pressure vessels in ash collection systems
- actuated by pneumatic cylinder
- well-proven, durable design
- both inlet and outlet flanges can be DN/EN standard or if necessary can have unique dimensions
- with abrasion-resistant chromium-plated cup
- max. operating temperature: 240 °C (Operating temperature with water cooling: 380 °C)
|
| |

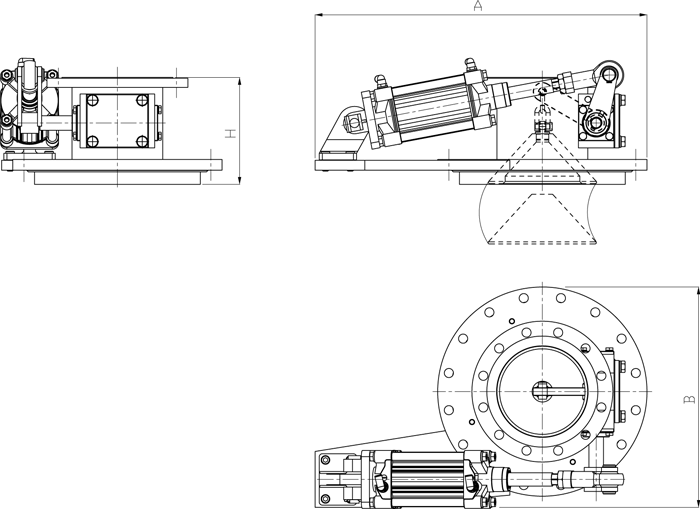

dimensions in [mm] |
Flange size |
Weight |
| Nominal size |
A |
B |
H |
Inlet |
Outlet |
[kg] |
| DN150 |
720 |
415 |
220 |
DN150 |
DN250 |
105 |
| DN200 |
800 |
532 |
258 |
DN200 |
DN350 |
130 |
| DN250 |
910 |
605 |
293 |
DN250 |
DN400 |
240 |
| DN300 |
1072 |
720 |
320 |
DN300 |
DN500 |
330 |
|
|
