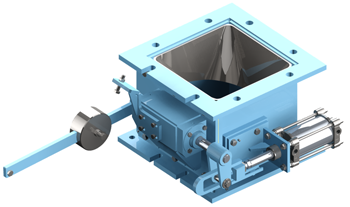

Weight-balanced feeders
- special valve for ash feeding into air slide
- it can be made as single or double feeder
- pneumatically operated double feeder version is applied under cyclone separator in vacuum system
|
|

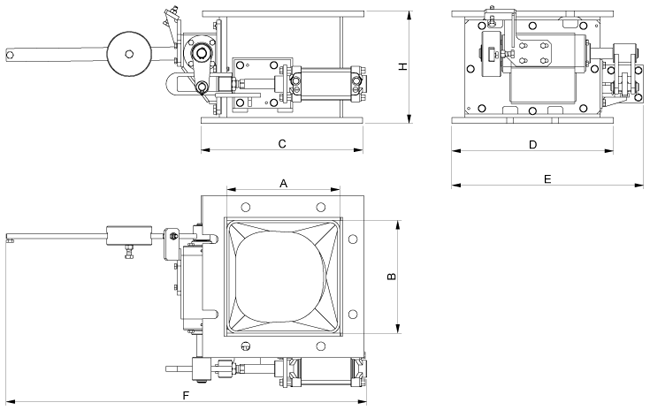

dimensions in [mm] |
weight |
| Nominal size |
A |
B |
C |
D |
E |
F |
H |
[kg] |
| 300x300 |
300 |
300 |
430 |
430 |
510 |
960 |
300 |
92 |
| 500x500 |
500 |
500 |
636 |
636 |
720 |
1140 |
400 |
145 |
|
|
