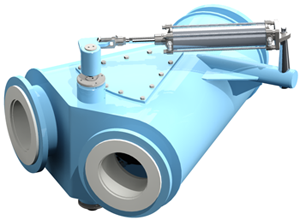

Pneumatically operated diverter valves
- diverter valve for all kinds of bulk material transported pneumatically
- simple and robust design
- for all kinds of bulk material which is transported pneumatically
- both inlet and outlet flanges can be DN/EN standard or if necessary can have unique dimensions
- with abrasion resistant ceramic lining
- upon request motor operated version is also available
|
|

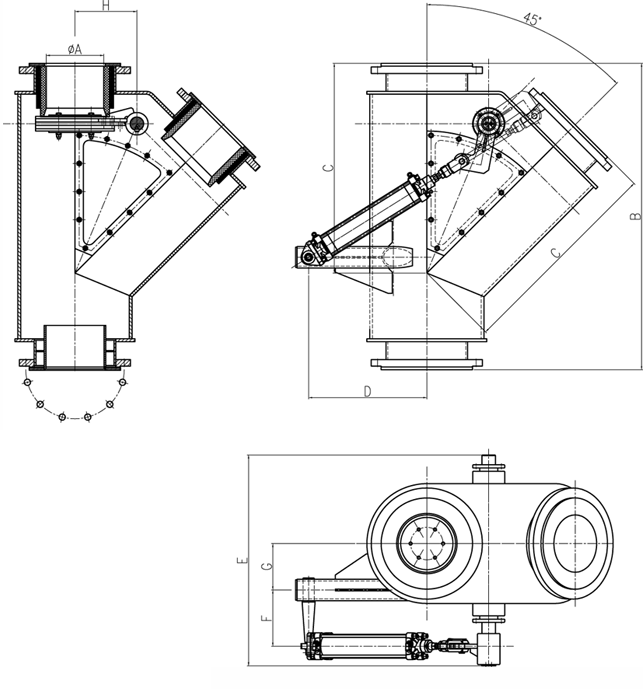

dimensions in [mm] |
Flange size |
Weight |
| Nominal size |
A |
B |
C |
D |
E |
F |
G |
H |
|
[kg] |
| DN150 |
150 |
970 |
686 |
|
|
|
|
195 |
DN200 |
255 |
| DN200 |
204 |
1094 |
746 |
420 |
750 |
200 |
165 |
220 |
DN250 |
315 |
| DN250 |
250 |
1140 |
816 |
606 |
840 |
230 |
185 |
245 |
DN300 |
390 |
| DN300 |
303 |
1200 |
885 |
598 |
900 |
235 |
205 |
270 |
DN350 |
480 |
| DN350 |
356 |
1260 |
937 |
626 |
980 |
235 |
250 |
295 |
DN400 |
550 |
| DN400 |
380 |
1300 |
973 |
769 |
1005 |
235 |
250 |
310 |
DN450 |
620 |
|
|
