Ash Handling Technologies

and other Bulk Material Solutions

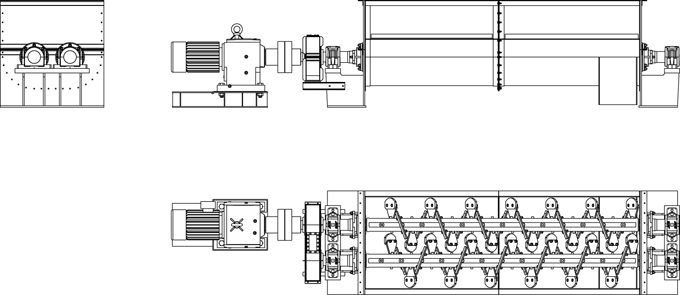

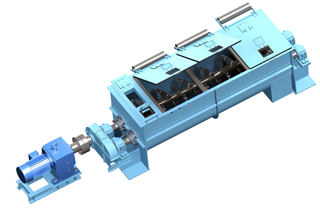

Twin-shaft screw type conditioning unloader

  • very effective fly ash moistening for dust free transport to final deposit site with belt conveyor system, open truck or railway wagon
  • mixing the fly ash with water and moistens it to earth-moist state
  • capacity: 40-350 m3/h (dry ash), 15-30% water demand
  • low speed rotation, long life time, low maintenance cost, very good mixing effect
  • for proper selecting of the conditioning unloaders beside the desired capacity the physical-chemical characteristics of material has to be specified too

Type Flow rate of dry fly ash Total weight Motor power
[m3/h] [kg] [kW]
NCS050 30-50 4750 18,5
NCS200 150-200 8500 37
NCS350 300-350 14000 75
